92% 95% Alumina Ceramic Rubber Panel
Introduction

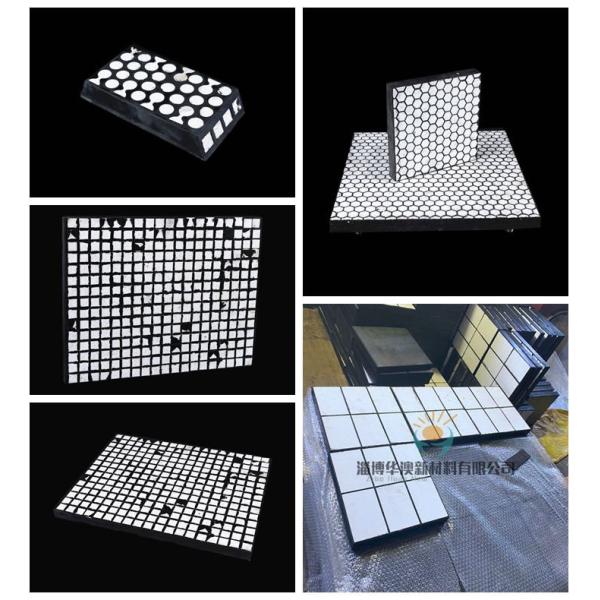

92% 95% Alumina Ceramic Rubber Panel is a composite of wear-resistant ceramics and rubber. Small square wear-resistant ceramics are vulcanized (inlaid) in special rubber at high temperature to form a wear-resistant ceramic rubber lining, which is installed in the equipment to prevent wear. In the middle, high-strength organic adhesive is used to bond the lining plate to the inner shell steel plate of the equipment to form a strong and buffering anti-wear layer. The square or hemispherical wear-resistant ceramic tiles is combined with rubber and steel plate to form a ceramic-rubber-steel composite wear-resistant plate.
Application
Raw material feed
Head chute liner
Impact curtains
Chute Liner
Rock boxes
Skirt Boards
Bucket Liner
Panel Size
| Panel Size | 300×300, 200×200, 225×225, 250×250, 400×400, 425×425, 500×500, 600×600 |
| Ceramic Size | Ceramic tiles are available from 10×10mm to 100×150mm; thickness of ceramic tile can be from 1.5mm to 1.5mm |
| Backing Plate | Steel plate with thickness ranging from 3mm to 10mm (optional) |
| Rubber Thickness | Depends upon the impact stress expected or customer requirement. |
| Remarks | Metal+Rubber+Ceramic/Rubber+Ceramic Plain surface or Spherical surface. Studs also aviilable upon request custom shapes can be made. |
Use
92% 95% Alumina Ceramic Rubber Panel have better wear resistance than metal materials and are easy to install. Has been widely used in iron and steel, thermal power, cement, coal, mine, port, chemical and other industries of material transportation equipment; Hopper, pipe, elbow, valve, fan blade, chute, ball mill, feeder, powder selection machine, ball mill and other anti-wear conditions. All kinds of alumina plate lining board and lining brick; We can design and produce arc, conical liner and special-shaped products according to customer needs. Alumina ceramics have better wear resistance than metal materials and are easy to install. Has been widely used in iron and steel, thermal power, cement, coal, mine, port, chemical and other industries of material transportation equipment; Hopper, pipe, elbow, valve, fan blade, chute, ball mill, feeder, powder selection machine, ball mill and other anti-wear conditions. All kinds of alumina plate lining board and lining brick; We can design and produce arc, conical liner and special-shaped products according to customer needs.
Goodness
High hardness, super wear resistance, excellent compactness, corrosion resistance, smooth shape, high stability, easy to operate. It is suitable for various industrial wear fields. Corrosion resistance, smooth shape, high stability, easy to operate. 92% 95% Alumina Ceramic Rubber Panel is suitable for various industrial wear fields.
FAQ
1 What is the payment method
30% paid for deposit by T/T after palcing order,the balance to be paid before shipment.
2 Can you provide free samples?
Yes, we can provide it, please send us specific needs, we will choose the right product sample
3 Can you see the catalogue of your company?
Yes, please email us, we will send it to you
